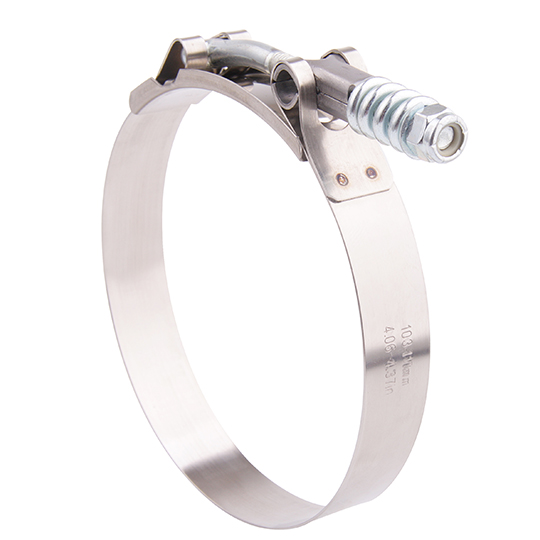

T-BOLT CLAMP WITH SPRING LOADED

TB34S

SPECIFICATIONS:

APPLICATIONS:

SIZE OPTIONS
38 TB34S-38 2-1/16 2-3/8 52 60 9Nm
40 TB34S-40 2-1/8 2-7/16 54.1 62.0 9Nm
48 TB34S-48 2-3/8 2-11/16 60.5 68.3 9Nm
52 TB34S-52 2-1/2 2-13/16 63.5 71.4 9Nm
56 TB34S-56 2-5/8 2-15/16 66.8 74.7 9Nm
60 TB34S-60 2-3/4 3-1/16 69.9 77.7 9Nm
64 TB34S-64 2-7/8 3-3/16 73.2 81.0 9Nm
72 TB34S-72 3-1/8 3-7/16 79.5 87.4 9Nm
76 TB34S-76 3-1/4 3-9/16 82.6 90.4 9Nm
80 TB34S-80 3-3/8 3-11/16 85.9 93.7 9Nm
88 TB34S-88 3-5/8 3-15/16 92.2 100.1 9Nm
92 TB34S-92 3-3/4 4-1/16 95.3 103.1 9Nm
108 TB34S-108 4-1/4 4-9/16 108 115.8 9Nm
116 TB34S-116 4-1/2 4-13/16 114.3 122.2 9Nm
124 TB34S-124 4-3/4 5-1/16 120.7 128.5 9Nm
132 TB34S-132 5 5-5/16 127 134.9 9Nm
148 TB34S-148 5-1/2 5-13/16 139.7 147.6 9Nm
156 TB34S-156 5-3/4 6-1/16 146.1 153.9 9Nm
164 TB34S-164 6 6-5/16 152.4 160.3 9Nm
172 TB34S-172 6-1/4 6-9/16 158.8 166.8 9Nm
180 TB34S-180 6-1/2 6-13/16 165.1 173.0 9Nm
188 TB34S-188 6-3/4 7-1/16 171.5 179.3 9Nm
208 TB34S-208 7-3/8 7-11/16 187 195 9Nm
258 TB34S-258 8-15/16 9-1/4 227 235 9Nm
298 TB34S-298 10-3/16 10-1/2 259 267 9Nm
326 TB34S-326 11-1/16 11-3/8 281 289 9Nm
346 TB34S-346 11-11/16 12 297 305 9Nm
PACKAGING OPTIONS
